AFIN8003 Week 7 Workshop - Credit Risk Modelling in Practice

Banking and Financial Intermediation

Dr. Mingze Gao

Department of Applied Finance

2026-04-28

Credit Risk Modelling in Practice

Why this workshop exists

  • Week 6 measured credit risk on an individual loan.
  • Week 7 lecture covered the portfolio view (concentration, migration, CDS).
  • This workshop fills in the practical middle: how a bank actually estimates PD, calibrates it, and turns it into regulatory capital using the Internal Ratings-Based (IRB) model.

Note

Every piece in this deck is a building block you will find useful in the group assignment. By the end of the session you should be able to look at a loan book and reason about regulatory capital end-to-end.

Roadmap — 8 widgets, 9 parts

  1. IRB three parameters (PD, LGD, EAD)
  2. Widget 1 — IRB RWA calculator
  3. Building a PD model — data & pipeline
  4. Widget 2 — Information Value intuition
  5. Widget 3 — Logistic curve visualiser · Widget 4 — ROC / threshold slider
  6. Widget 5 — Rating bin tuner (calibration)
  7. Widget 6 — Transition matrix heatmap (validation)
  8. Widgets 7–8 — Altman Z-score · Merton distance-to-default
  9. Knowledge check + wrap-up

Tip

Everything runs in your browser. Nothing to install. Nothing to download. Slide numbers are in the footer — if you get lost, shout a number.

Credit risk dominates the capital stack

Table 1: 2024 RWA (A$m) of major Australian banks (source: Capital IQ)
CBA Westpac NAB ANZ Macquarie
RWA for credit risk 370,444 351,724 350,891 361,185 98,250
RWA for market risk 52,132 37,510 26,953 30,875 14,277
RWA for operational risk 44,975 48,196 36,102 49,650 17,512
Other RWA 0 0 0 4,872 0
Total RWA 467,551 437,430 413,946 446,582 130,039
  • Credit risk = ~80% of total RWA for every major Australian bank.
  • The IRB approach is how they turn a loan book into an RWA number.
  • If you misestimate PD, LGD or EAD, you miscapitalise the bank.

Overview of the IRB Approach

Using the IRB approach, banks need to classify its banking book exposures to one of the following asset classes:

  1. corporate;
  2. sovereign;
  3. financial institution; and
  4. retail.

Then for each asset class, banks must estimate the key risk parameters to calculate RWA. The total RWA (for credit risk) is the sum of the RWA for each asset class, subject to certain adjustments.1

A simplified overview of the IRB approach is illustrated below.

Code
flowchart LR
    subgraph Corporate
        A1[Estimate PD] --> D1[Risk-weight function]
        B1[Estimate LGD] --> D1
        C1[Estimate EAD] --> D1
        D1 --> E1[RWA Corporate]
        style A1 fill:#ddeaf1,stroke:#333,stroke-width:2px
        style B1 fill:#ddeaf1,stroke:#333,stroke-width:2px
        style C1 fill:#ddeaf1,stroke:#333,stroke-width:2px
    end
    subgraph Sovereign
        A2[...] -->
        E2[RWA Sovereign]
    end
    subgraph Financial Institution
        A3[...] --> E3[RWA Financial]
    end
    subgraph Retail
        A4[...] --> E4[RWA Retail]
    end
    E1 --> F[Aggregation]
    E2 --> F
    E3 --> F
    E4 --> F
    F --> G[Total Credit Risk RWA]

Retail

Financial Institution

Sovereign

Corporate

Estimate PD

Risk-weight function

Estimate LGD

Estimate EAD

RWA Corporate

…

RWA Sovereign

…

RWA Financial

…

RWA Retail

Aggregation

Total Credit Risk RWA

The three pillars of IRB

Code
flowchart LR
    subgraph IRB_inputs [IRB parameters per exposure]
        PD[<b>PD</b><br/>Probability<br/>of default]
        LGD[<b>LGD</b><br/>Loss given<br/>default]
        EAD[<b>EAD</b><br/>Exposure at<br/>default]
        M[<b>M</b><br/>Maturity]
    end
    IRB_inputs --> RWF["Risk-weight function<br/>K = f(PD, LGD, M)"]
    RWF --> RWA["<b>RWA</b> = K × 12.5 × EAD"]
    style PD fill:#D6D2C4,stroke:#333
    style LGD fill:#D6D2C4,stroke:#333
    style EAD fill:#D6D2C4,stroke:#333
    style M fill:#D6D2C4,stroke:#333
    style RWA fill:#A6192E,color:#fff,stroke:#333

IRB parameters per exposure

PD
Probability
of default

LGD
Loss given
default

EAD
Exposure at
default

M
Maturity

Risk-weight function
K = f(PD, LGD, M)

RWA = K × 12.5 × EAD

  • PD comes from a credit-scoring model (this workshop focuses here).
  • LGD and EAD come from loss-experience data and loan contracts.
  • K is the capital requirement per unit EAD — Basel gives us the formula.

Part 1 — The IRB risk-weight function

The capital formula (APRA APS 113 / Basel III)

Correlation (borrowers’ co-movement with the system): \[ R = AVCM \cdot \left[0.12 \cdot \tfrac{1-e^{-50\,PD}}{1-e^{-50}} + 0.24 \cdot \left(1 - \tfrac{1-e^{-50\,PD}}{1-e^{-50}}\right)\right] \]

Maturity adjustment: \[ b = \left(0.11852 - 0.05478 \ln(PD)\right)^2 \]

Capital requirement (per unit EAD): \[ K = \left[LGD \cdot N\!\left(\tfrac{G(PD) + \sqrt{R}\,G(0.999)}{\sqrt{1-R}}\right) - PD \cdot LGD\right] \cdot \tfrac{1+(M-2.5)\,b}{1-1.5\,b} \]

Risk-weighted asset: \[ RWA = K \times 12.5 \times EAD \]

Widget 1 — IRB RWA calculator

Try this first

Drag the PD slider from 0.05% to 30%. Watch RWA rise, then fall. Can you find the peak? Why does K drop for very high PDs?

Why K falls at very high PD

Expected vs unexpected loss

IRB capital K covers only unexpected losses — the tail surprise.

  • Low PD. A default is surprising and large when it happens. The unexpected component dominates — capital rises with PD.
  • High PD (say, >30%). Default is nearly certain. Most of the loss is expected and paid for with accounting provisions (IFRS 9), not capital.

Capital is for the surprise. Once there is no surprise left, capital retreats.

Part 2 — Building a credit scoring model

What a scoring model is — and why

A credit scoring model turns borrower characteristics (financials, behavioural data, market signals) into a single score that rank-orders borrowers by default risk. The score is then converted into a PD estimate fed into the IRB capital formula from Part 1.

  • Input: borrower-level features (leverage, profitability, size, governance, …).
  • Output: a probability of default over a one-year horizon.
  • Why it matters: without a scoring model, a bank has no principled way to separate a BBB borrower from a CCC borrower — and no defensible PD for capital.

The next few slides walk the standard build pipeline — sample, screen, estimate, calibrate, validate.

The modelling pipeline

Code
flowchart LR
    A[Sample selection] --> B[Variable screening]
    B --> C[Model estimation<br/>& evaluation]
    C --> D[Calibration]
    D --> E[Transition matrix<br/>analysis]
    E --> F{Ratings stable?}
    F -- No --> D
    F -- Yes --> G[RWA impact<br/>analysis]
    G --> H{Impact acceptable?}
    H -- Yes --> I[Approval & deployment]
    H -- No  --> D

No

Yes

Yes

No

Sample selection

Variable screening

Model estimation
& evaluation

Calibration

Transition matrix
analysis

Ratings stable?

RWA impact
analysis

Impact acceptable?

Approval & deployment

  • Each arrow is a decision banks actually make.
  • Each decision leaves audit trail the regulator reads.
  • This workshop walks every node.

Simulate a loan book

Show data simulation code (R)
# Parameters — reduced scale for workshop render speed (blog post uses 100k loans).
current_year <- 2025
n_loans     <- 10000
n_borrowers <- 2500
n_years     <- 5

rating_labels <- c("AAA", "AA", "A", "BBB", "BB", "B", "CCC", "CC", "C")
grade_prop    <- c(0.01, 0.04, 0.15, 0.30, 0.25, 0.15, 0.06, 0.025, 0.005)
target_n      <- round(n_loans * grade_prop)
target_n[length(target_n)] <- n_loans - sum(target_n[-length(target_n)])

n_loans_large     <- 10 * n_loans
n_borrowers_large <- 10 * n_borrowers

set.seed(42)

borrower_large <- data.frame(
  borrower_id = 1:n_borrowers_large,
  net_worth   = round(rlnorm(n_borrowers_large, log(120), 0.7), 2)
)
borrower_large$leverage          <- round(runif(n_borrowers_large, 0.1, 0.9), 2)
borrower_large$assets            <- borrower_large$net_worth / (1 - borrower_large$leverage)
borrower_large$debt              <- borrower_large$assets * borrower_large$leverage
borrower_large$ebitda_margin     <- rnorm(n_borrowers_large, 0.18, 0.06)
borrower_large$revenue           <- borrower_large$assets * runif(n_borrowers_large, 0.5, 1.5)
borrower_large$ebitda            <- borrower_large$revenue * borrower_large$ebitda_margin
borrower_large$ebitda_to_debt    <- round(borrower_large$ebitda / (borrower_large$debt + 1e-2), 3)
borrower_large$net_profit_margin <- pmax(pmin(rnorm(n_borrowers_large, 0.08, 0.04), 0.25), -0.2)
borrower_large$net_profit_vol    <- abs(rnorm(n_borrowers_large, 0.03, 0.015))
borrower_large$board_size        <- sample(3:15, n_borrowers_large, replace = TRUE)
borrower_large$ceo_tenure        <- sample(1:20, n_borrowers_large, replace = TRUE)
borrower_large$audit_firm_big4   <- rbinom(n_borrowers_large, 1, 0.7)

loan_large <- data.frame(
  loan_id             = 1:n_loans_large,
  borrower_id         = sample(borrower_large$borrower_id, n_loans_large, replace = TRUE),
  amount_in_thousands = round(rlnorm(n_loans_large, log(20), 0.7), 2),
  term_months         = sample(c(12, 36, 60, 84), n_loans_large, replace = TRUE, prob = c(0.2, 0.5, 0.2, 0.1)),
  interest_rate       = round(rnorm(n_loans_large, 0.045, 0.012), 4),
  year_borrowed       = sample((current_year-n_years+1):current_year, n_loans_large, replace = TRUE)
)
loan_large <- merge(loan_large, borrower_large, by = "borrower_id")

loan_large <- loan_large |>
  left_join(borrower_large[, c("borrower_id", "debt")], by = "borrower_id", suffix = c("", ".b")) |>
  mutate(amount_in_thousands = pmin(amount_in_thousands, debt)) |>
  select(-debt)

linpred_large <- 0.13 +
   0.12   * loan_large$leverage +
  -4.8    * loan_large$ebitda_to_debt +
  -1.1    * (loan_large$ebitda_to_debt)^2 +
  -4.5    * loan_large$net_profit_margin +
  -0.5    * (loan_large$net_profit_margin)^2 +
   4.1    * loan_large$net_profit_vol +
   0.001  * loan_large$amount_in_thousands +
  -0.0065 * loan_large$net_worth +
   0.002  * loan_large$interest_rate +
   0.05   * loan_large$board_size +
  -0.005  * loan_large$ceo_tenure +
  -0.03   * loan_large$audit_firm_big4 +
   0.001  * loan_large$term_months

loan_large$pd_pit <- plogis(linpred_large)

pd_breaks <- c(0, 0.0005, 0.001, 0.002, 0.007, 0.02, 0.05, 0.15, 0.25, 1)
loan_large$rating <- cut(
  loan_large$pd_pit, breaks = pd_breaks, labels = rating_labels,
  include.lowest = TRUE, right = TRUE
)

loan <- purrr::map2_dfr(
  rating_labels, target_n,
  ~{
    pool <- loan_large[loan_large$rating == .x, ]
    if (nrow(pool) < .y) stop(glue::glue("Not enough loans in grade {.x}"))
    pool[sample(nrow(pool), .y), ]
  }
)

long_run_pd_table <- data.frame(
  rating      = rating_labels,
  long_run_pd = c(0.03, 0.07, 0.20, 0.60, 1.50, 3.50, 10.0, 25.0, 30.0) / 100
)

loan$default <- 0L
for (i in seq_along(rating_labels)) {
  grade    <- rating_labels[i]
  pd_target <- long_run_pd_table$long_run_pd[i]
  idx      <- which(loan$rating == grade)
  n_grade  <- length(idx)
  n_def    <- round(pd_target * n_grade)
  if (n_grade > 0 && n_def > 0) {
    idx_sorted <- idx[order(loan$pd_pit[idx], decreasing = TRUE)]
    loan$default[idx_sorted[seq_len(n_def)]] <- 1L
  }
}

credit_data <- loan[, c(
  "loan_id", "borrower_id", "year_borrowed", "net_worth", "leverage", "ebitda_to_debt",
  "net_profit_margin", "net_profit_vol", "board_size", "ceo_tenure", "audit_firm_big4",
  "amount_in_thousands", "term_months", "interest_rate", "default", "rating"
)]

# Train/test split 80/20
train_indices <- sample(1:nrow(credit_data), 0.8 * nrow(credit_data))
train_data <- credit_data[train_indices, ]
test_data  <- credit_data[-train_indices, ]

Note

credit_data now holds 10,000 simulated loans over 5 years, with 9 rating grades and a realistic default distribution. The set.seed(42) above makes this reproducible — rerun my analysis and you will get the same tables.

Sample overview

Table 2: Grade distribution and observed default rates
Grade Count Defaults DR (%)
AAA 100 0 0.00
AA 400 0 0.00
A 1500 3 0.20
BBB 3000 18 0.60
BB 2500 38 1.52
B 1500 53 3.53
CCC 600 60 10.00
CC 250 62 24.80
C 150 45 30.00
Table 3: Selected borrower features (first 8 loans)
rating leverage ebitda_to_debt net_profit_margin audit_firm_big4
AAA 0.20 1.570 0.05228759 1
AAA 0.15 3.500 0.02123000 1
AAA 0.24 1.266 0.06382022 0
AAA 0.13 2.080 0.14181449 1
AAA 0.20 1.133 0.03198643 0
AAA 0.20 2.129 0.06542483 0
AAA 0.21 1.667 0.13989811 0
AAA 0.20 1.262 0.06364150 0
  • Defaults are concentrated in lower grades — exactly what a credit-scoring model is supposed to achieve in-sample.
  • Are you looking at PIT default rates or long-run? What’s the difference for capital?

Part 3 — Variable screening

Why screen before fitting?

A typical credit file has dozens to hundreds of potential predictors — ratios, trends, bureau flags, transactional features. Throwing all of them into a regression is a bad idea:

  • Noise variables dilute signal and inflate standard errors.
  • Highly correlated predictors cause multicollinearity — unstable coefficients, fragile predictions out of sample.
  • Weak predictors make the model harder to explain to credit officers, auditors, and regulators — and harder to monitor over time.

The goal of variable screening is to arrive at a compact set of strong, non-redundant predictors before any model is fit. We do it in two passes:

  1. Univariate screening — drop variables that carry little signal about default (using Information Value).
  2. Correlation / redundancy control — among survivors, drop one of any highly correlated pair (keep the more informative).

Information Value (IV)

For a predictor \(X\) split into \(k\) bins, with \(p_i^G, p_i^B\) the proportion of goods and bads in bin \(i\):

\[ IV(X) = \sum_{i=1}^k \left( p_i^G - p_i^B \right) \cdot \ln\!\left( \frac{p_i^G}{p_i^B} \right) \]

Rules of thumb (industry convention):

IV range Interpretation
< 0.02 Not predictive
0.02 – 0.10 Weak
0.10 – 0.30 Medium (useful)
0.30 – 0.50 Strong
> 0.50 Suspicious — check for leakage

Widget 2 — IV intuition

Experiment

Set \(p^G\) and \(p^B\) for one bin. If goods and bads are proportionally the same, IV contribution is 0 — the bin carries no signal. Push them apart to see contribution grow.

IV screening — the real table

Compute Information Value for each candidate variable (R)
library(scorecard)

vars <- c(
  "net_worth", "leverage", "ebitda_to_debt",
  "net_profit_margin", "net_profit_vol",
  "board_size", "ceo_tenure", "audit_firm_big4"
)

iv_df <- scorecard::iv(train_data, y = "default", x = vars) |>
  as_tibble() |>
  arrange(desc(info_value)) |>
  rename(Variable = variable, `Information Value` = info_value)

iv_df |> tt() |> style_tt(j = 1, align = "l") |> style_tt(j = 2, align = "r") |>
  format_tt(j = 2, digits = 3)
Table 4
Variable Information Value
leverage 1.1601
ebitda_to_debt 0.6423
net_worth 0.3026
net_profit_margin 0.2725
net_profit_vol 0.2725
ceo_tenure 0.2019
board_size 0.0465
audit_firm_big4 0.0058

Variables passing the IV ≥ 0.1 cut: leverage, ebitda_to_debt, net_worth, net_profit_margin, net_profit_vol, ceo_tenure.

Correlation screening

  • Two variables with \(|r| > 0.6\) → keep the one with higher IV.
  • Multicollinearity doesn’t bias logistic coefficients but does inflate standard errors and destabilise interpretation.
Table 5: Correlation matrix of candidate variables
Variable leverage ebitda_to_debt net_worth net_profit_margin net_profit_vol ceo_tenure
leverage 1.000 -0.695 0.372 0.055 0.006 0.019
ebitda_to_debt -0.695 1.000 -0.447 -0.066 -0.003 -0.013
net_worth 0.372 -0.447 1.000 -0.007 0.020 -0.034
net_profit_margin 0.055 -0.066 -0.007 1.000 -0.003 -0.007
net_profit_vol 0.006 -0.003 0.020 -0.003 1.000 -0.001
ceo_tenure 0.019 -0.013 -0.034 -0.007 -0.001 1.000

After correlation control, the final feature set is: leverage, net_worth, net_profit_margin, net_profit_vol, ceo_tenure.

Part 4 — Logistic regression

The logit model

\[ P(\text{default}=1\mid X) = \frac{1}{1 + \exp(-\beta^\top X)} \]

  • Bounded in \([0,1]\) — outputs are valid probabilities.
  • Linear in log-odds — coefficients have a clean interpretation.
  • Fits with maximum likelihood; no closed form, but glm() handles it.

Tip

A one-unit increase in \(X_k\) changes the log-odds by \(\beta_k\). Multiplicative effect on odds is \(e^{\beta_k}\).

Widget 3 — The sigmoid

Experiment

Drag \(\beta_0\) — the curve shifts horizontally. Drag \(\beta_1\) — the curve tilts (positive = default risk rises with \(X\); negative = falls). The magnitude of \(\beta_1\) controls how “sharp” the transition is.

Fit the model on training data

Fit glm() with family=binomial() on the final feature set
logit_formula <- as.formula(paste("default ~", paste(final_vars, collapse = " + ")))

logit_fit <- glm(
  formula = logit_formula,
  data    = train_data,
  family  = binomial()
)

modelsummary(
  list("Logistic model" = logit_fit),
  stars = c("*" = 0.1, "**" = 0.05, "***" = 0.01),
  note  = "Standard errors in parentheses.",
  output = "tinytable"
)
Table 6: Logistic regression: estimated coefficients
Logistic model
* p < 0.1, ** p < 0.05, *** p < 0.01
Standard errors in parentheses.
(Intercept) -4.300***
(0.289)
leverage 5.477***
(0.316)
net_worth -0.006***
(0.001)
net_profit_margin -8.794***
(1.709)
net_profit_vol 3.301
(4.770)
ceo_tenure 0.003
(0.012)
Num.Obs. 8000
AIC 1763.8
BIC 1805.7
Log.Lik. -875.888
RMSE 0.16
  • Look at signs. Higher leverage → higher PD (positive \(\beta\)). Higher profitability → lower PD (negative \(\beta\)).
  • The magnitudes are on the log-odds scale — don’t read them as probability effects directly.

ROC and AUC

Score test set, compute ROC, plot
library(pROC)

test_data$pd_hat <- predict(logit_fit, newdata = test_data, type = "response")

roc_obj  <- roc(response = test_data$default, predictor = test_data$pd_hat, direction = "<")
auc_val  <- as.numeric(auc(roc_obj))
gini_val <- 2 * auc_val - 1

roc_df <- data.frame(
  fpr = 1 - roc_obj$specificities,
  tpr = roc_obj$sensitivities
)

ggplot(roc_df, aes(x = fpr, y = tpr)) +
  geom_line(linewidth = 1, color = "#A6192E") +
  geom_abline(slope = 1, intercept = 0, linetype = 2, color = "#888") +
  labs(
    title = sprintf("AUC = %.3f · Gini = %.3f", auc_val, gini_val),
    x = "False positive rate", y = "True positive rate"
  ) +
  theme_minimal(base_size = 13)

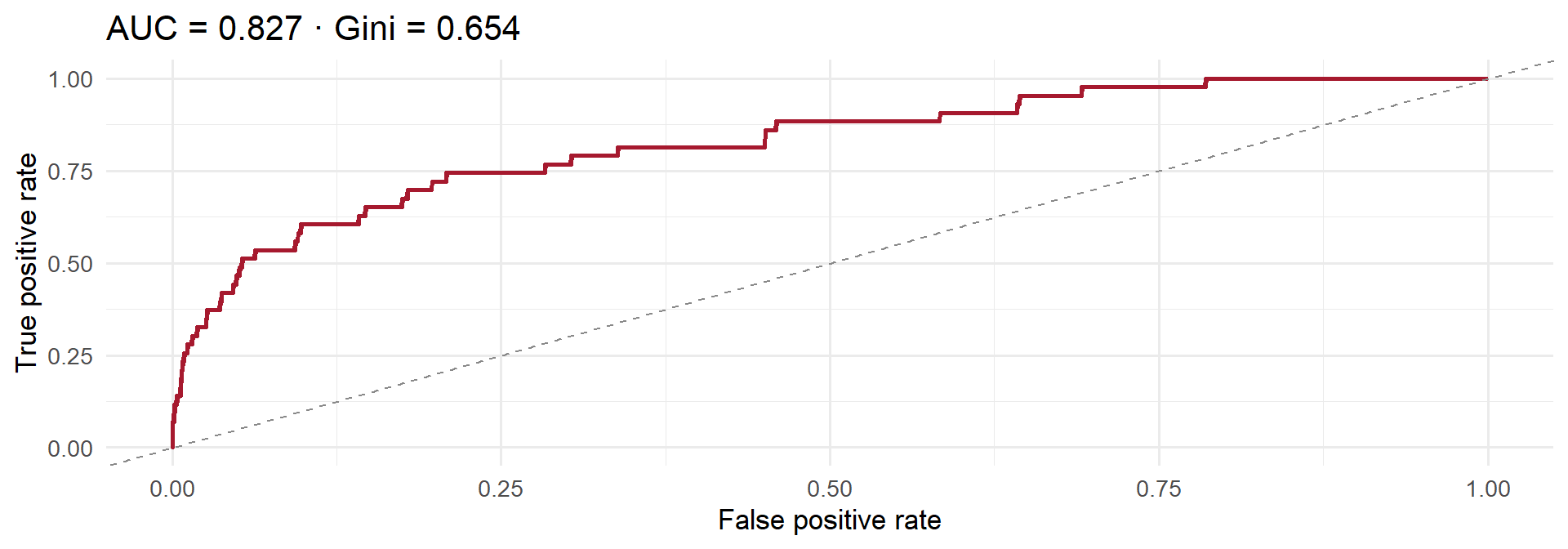

Figure 1: ROC curve on held-out test data

  • AUC = probability that a randomly chosen defaulter is ranked above a randomly chosen non-defaulter.
  • Gini = \(2 \cdot AUC - 1\). Bounded in \([0, 1]\); random model → 0; perfect model → 1.
  • An AUC of 0.70 is deployable; 0.80+ is strong; above 0.95, suspect leakage.

Widget 4 — ROC threshold slider

Why this matters

AUC measures ranking. But to deploy a model, you pick a threshold. Different thresholds → different costs. A default missed costs X; a good loan denied costs Y. The threshold is a business call, not a statistical one.

Move the threshold up: fewer false positives (good customers you denied), but more missed defaulters. Move it down: catch more defaulters, but deny a lot of good applicants. This tension is the whole job of a credit officer.

Part 5 — Calibration

PIT PD vs long-run PD

  • Logistic output = point-in-time (PIT) PD. Reflects current conditions; cycles.
  • Basel III requires long-run PDs — multi-year averages — for capital. Pro-cyclicality is bad for stability.
  • Calibration = mapping continuous PIT PDs into discrete grades, each with a long-run PD attached.

The calibrated rating table

Table 7: Example calibrated rating table
Grade Description PIT PD range Long-run PD
AAA Prime 0.00 – 0.05% 0.00%
AA Very strong 0.05 – 0.10% 0.07%
A Strong 0.10 – 0.25% 0.20%
BBB Satisfactory 0.25 – 0.75% 0.60%
BB Weak 0.75 – 2.00% 1.50%
B Very weak 2.00 – 5.00% 3.50%
CCC Distressed 5.00 – 15.0% 10.0%
CC Highly distressed 15.0 – 25.0% 25.0%
C Near default ≥ 25.0% 30.0%

Caution

APS 113 floor. Every grade’s long-run PD must be at least 0.05% for capital. The AAA row above has PD = 0.00% — for capital calculation we would floor it to 0.05%.

Widget 5 — Rating bin tuner

You’re the credit committee

Drag the cut-points. Watch the grade distribution shift. In practice, calibration is a policy decision — tighter cutoffs mean fewer borrowers in top grades, which affects both RWA and commercial targeting.

Notice: when you narrow the AAA band, those borrowers spill into AA — increasing the count of a higher-risk grade, hence the bank’s RWA even if nothing changed in the underlying book. Calibration is not neutral.

Part 6 — Validation

Transition matrix — old vs new ratings

Cross-tabulate old vs new ratings
calib_rating_labels <- c("AAA", "AA", "A", "BBB", "BB", "B", "CCC", "CC", "C")
calib_pd_breaks     <- c(0, 0.0005, 0.001, 0.002, 0.007, 0.02, 0.05, 0.15, 0.25, 1)

credit_data$rating_new <- cut(
  credit_data$pd_pit_new,
  breaks = calib_pd_breaks, labels = calib_rating_labels,
  include.lowest = TRUE, right = TRUE
)

transition_mat  <- table("Old" = credit_data$rating, "New" = credit_data$rating_new)
transition_prop <- round(prop.table(transition_mat, margin = 1) * 100, 1)

transition_df <- as.data.frame.matrix(transition_prop) |>
  tibble::rownames_to_column(var = "Old \\ New")

transition_df |> tt() |>
  style_tt(j = 1, align = "l", bold = TRUE) |>
  style_tt(j = 2:10, align = "r")
Table 8: Transition matrix: how ratings shift from old model to new model (% by old-row)
Old \ New AAA AA A BBB BB B CCC CC C
AAA 3.0 1.0 8.0 50.0 37.0 1.0 0.0 0.0 0.0
AA 3.8 5.0 4.5 28.7 47.8 9.8 0.5 0.0 0.0
A 0.7 1.5 6.3 28.4 50.0 12.3 0.8 0.0 0.0
BBB 0.3 1.2 5.0 25.3 49.0 17.5 1.7 0.0 0.0
BB 0.0 0.1 1.5 17.9 45.4 28.5 6.5 0.0 0.0
B 0.1 0.0 0.1 5.3 31.1 37.7 22.7 2.5 0.5
CCC 0.0 0.0 0.0 1.2 14.7 28.8 39.3 11.7 4.3
CC 0.0 0.0 0.0 0.4 3.2 16.8 33.6 26.4 19.6
C 0.0 0.0 0.0 0.0 2.7 6.7 24.0 22.7 44.0
  • Diagonal cells = borrowers whose grade is unchanged.
  • A good model moves mass toward the diagonal. Wild dispersion = instability = recalibrate.

Widget 6 — Transition matrix heatmap

RWA impact — does the new model hold up?

Apply irb_rwa() to each active loan under old and new ratings
irb_rwa <- function(PD, LGD, EAD, M, AVCM = 1) {
  PD <- pmax(PD, 0.0005)
  x  <- (1 - exp(-50 * PD)) / (1 - exp(-50))
  R  <- AVCM * (0.12 * x + 0.24 * (1 - x))
  b  <- (0.11852 - 0.05478 * log(PD))^2
  term <- (qnorm(PD) + sqrt(R) * qnorm(0.999)) / sqrt(1 - R)
  K  <- (LGD * pnorm(term) - PD * LGD) * ((1 + (M - 2.5) * b) / (1 - 1.5 * b))
  pmax(K, 0) * 12.5 * EAD
}

long_run_pd_table <- data.frame(
  rating      = calib_rating_labels,
  long_run_pd = c(0.0005, 0.0007, 0.0020, 0.0060, 0.0150, 0.0350, 0.10, 0.25, 0.30)
)

credit_data$pd_old <- long_run_pd_table$long_run_pd[match(credit_data$rating,     long_run_pd_table$rating)]
credit_data$pd_new <- long_run_pd_table$long_run_pd[match(credit_data$rating_new, long_run_pd_table$rating)]

credit_data$maturity_year <- credit_data$year_borrowed + ceiling(credit_data$term_months / 12) - 1
active_loans <- credit_data |> filter(maturity_year >= current_year)

LGD <- 0.20
EAD <- active_loans$amount_in_thousands * 1000
M   <- active_loans$term_months / 12

active_loans$rwa_old <- irb_rwa(active_loans$pd_old, LGD, EAD, M, 1)
active_loans$rwa_new <- irb_rwa(active_loans$pd_new, LGD, EAD, M, 1)

total_rwa_old <- sum(active_loans$rwa_old, na.rm = TRUE)
total_rwa_new <- sum(active_loans$rwa_new, na.rm = TRUE)
total_ead     <- sum(EAD,                   na.rm = TRUE)
pct_change    <- (total_rwa_new - total_rwa_old) / total_rwa_old * 100

tibble(
  Scenario       = c("Old ratings", "New ratings"),
  `Total EAD`    = c(total_ead,    total_ead),
  `Total RWA`    = c(total_rwa_old, total_rwa_new)
) |>
  mutate(
    `Total EAD` = format(round(`Total EAD`), big.mark = ",", scientific = FALSE, trim = TRUE),
    `Total RWA` = format(round(`Total RWA`), big.mark = ",", scientific = FALSE, trim = TRUE)
  ) |>
  tt() |> style_tt(j = 1, align = "l") |> style_tt(j = 2:3, align = "r")
Table 9: Total RWA under old vs new ratings (active loans, LGD=20%, AVCM=1)
Scenario Total EAD Total RWA
Old ratings 138,559,930 73,144,324
New ratings 138,559,930 84,600,942

The new model shifts total RWA by +15.66%. A bank signs off or sends the model back for recalibration based on this number and the stability of ratings.

Part 7 — Classic scoring models (bonus)

Before logit: Altman’s Z-score (1968)

Ed Altman fit a discriminant function on US manufacturers:

\[ Z = 1.2 X_1 + 1.4 X_2 + 3.3 X_3 + 0.6 X_4 + 1.0 X_5 \]

where

  • \(X_1=\) Working capital / Total assets
  • \(X_2=\) Retained earnings / Total assets
  • \(X_3=\) EBIT / Total assets
  • \(X_4=\) Market equity / Book liabilities
  • \(X_5=\) Sales / Total assets

Zones:

  • \(Z < 1.81\) → distressed
  • \(1.81 \le Z < 2.99\) → grey
  • \(Z \ge 2.99\) → safe

Widget 7 — Altman Z-score calculator

Note

Z-score is an accounting-data scorecard — no market prices required. That’s its appeal for private firms. Its weakness is that the coefficients were fit on 1960s US manufacturers; they are not universal.

Merton’s structural model (1974)

Treat the firm as a call option on its assets:

  • Assets \(V\) evolve as geometric Brownian motion with volatility \(\sigma\).
  • Debt \(D\) matures at horizon \(T\).
  • Equity \(=\) \(\max(V_T - D, 0)\) — a call option on assets.
  • Default at \(T\) if \(V_T < D\).

\[ d_2 = \frac{\ln(V/D) + (r - \sigma^2/2)\,T}{\sigma\sqrt{T}}, \qquad PD = N(-d_2) \]

Widget 8 — Merton distance-to-default

Tip

Two worldviews for the same number. Logit says “PD is a function of accounting ratios.” Merton says “PD is implied by the firm’s market-value capital structure.” Moody’s KMV commercialised Merton; Basel IRB expects logit-style empirical models. Real banks often blend both.

Part 8 — Knowledge check

Quiz 1

If PD doubles from 1.0% to 2.0%, does RWA double?

No. The risk-weight function is non-linear in PD — via correlation \(R\), the maturity adjustment \(b\), and the normal-CDF term. Use Widget 1 to check: at the default settings, RWA approximately increases by ~50% when PD doubles from 1% → 2%, not 100%.

Quiz 2

Our fitted model above scored AUC ≈ 0.83 (Gini ≈ 0.65) on held-out data. A colleague says “great, we’re ready to deploy.” Are they?

Not by itself. AUC ≈ 0.83 is a respectable discrimination number, but discrimination is only one of four pillars. Before deployment you also need:

  • Calibration — do predicted PDs match the realised default rates per grade? A well-ranked model can still be systematically off.
  • Threshold economics — Widget 4 shows the false-positive / false-negative trade-off. The right threshold depends on the cost of missed defaulters vs denied good loans.
  • Stability — Widget 6 and the transition matrix: does the new model re-grade borrowers sensibly, or does it churn them across grades?
  • RWA impact — will the new model’s long-run PDs blow through the capital budget?

A headline AUC number is a necessary condition, not a sufficient one.

Quiz 3

In our transition matrix (Table 8), only ~3% of old-AAA borrowers remain AAA under the new model — about 50% are re-graded all the way down to BBB. About 49% of old-BBB loans drop to BB. Good news or bad?

Red flag either way — it needs a story. A three-notch downgrade concentrated at the prime end of the book is exactly the kind of shift a regulator will ask about:

  • If the old AAAs really were prime, the new model is broken at the high end — investigate the coefficients driving low-PD scores.
  • If the old AAAs were never really AAA, the old model was too generous and the bank was under-capitalised — a correction, but one that must come with a provisioning and capital-planning story.

The large one-notch drift across the whole book (old-BBB → new-BB, old-A → new-BB) says the new model is systematically more conservative. You don’t deploy a model with this much migration without (a) understanding which story applies and (b) stress-testing the RWA impact (Table 9).

Quiz 4

Why does IRB capital \(K\) fall when PD goes above ~30%?

Because K covers unexpected loss, not expected loss. When default is almost certain, the loss is expected — it belongs in provisioning (IFRS 9), not in capital. The “surprise” component — which is what capital funds — shrinks as PD approaches 1.

Wrap-up

Key takeaways

  1. RWA = K × 12.5 × EAD is the business end of credit-risk modelling. Everything before it — simulate, screen, fit, calibrate, validate — feeds one number.
  2. PIT vs long-run PD. Logit outputs are PIT; Basel capital needs long-run. Calibration is the bridge, and it’s a policy choice.
  3. Model quality is three things, not one. Discrimination (AUC) + calibration + stability. Skip any one and you will be told about it.
  4. Capital ≠ provisioning. Expected loss lives in provisions (IFRS 9). Unexpected loss lives in capital (Basel). Don’t double-count.
  5. Structural vs empirical. Merton and logit answer the same question from different directions. Use both when you can.

Resources

References

Gorton, G B, and Ping He. 2008. “Bank Credit Cycles.” Review of Economic Studies 75 (4): 1181–214.
Merton, Robert C. 1974. “On the Pricing of Corporate Debt: The Risk Structure of Interest Rates*.” The Journal of Finance 29 (2): 449–70. https://doi.org/10.1111/j.1540-6261.1974.tb03058.x.
